RFID Upgraded Arduino Starter Kit Stepper Motor Learning Kit with UNO R3 37 Module Set for Beginners Programming and Electronics Projects
RFID Upgraded Arduino Starter Kit Stepper Motor Learning Kit with UNO R3 37 Module Set for Beginners Programming and Electronics Projects
RFID Upgraded Arduino Starter Kit with Stepper Motor and 37 Modules for Beginners
Starting with electronics and programming can be challenging when you need to source many individual components. This Arduino starter kit solves that by bundling a UNO R3 board with over 30 modules and sensors in one package. It includes essential items like a stepper motor, RFID module, servo, LCD display, and various sensors, making it suitable for learning Arduino basics, building IoT prototypes, or completing school STEM projects. The kit is powered at 5V via USB, and the CH340 chip ensures easy connection to Windows, Mac, and Linux computers.
Features and Construction
The kit is built around the popular UNO R3 form factor with a CH340 USB interface. Each module is designed for direct connection using jumper wires, and the included breadboard allows for solderless circuit prototyping.
Included Modules and Components

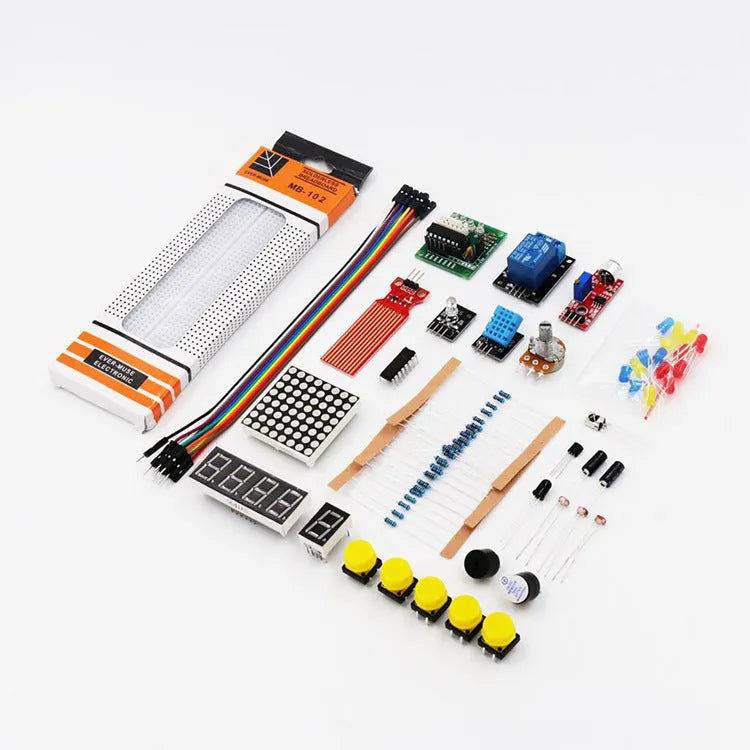

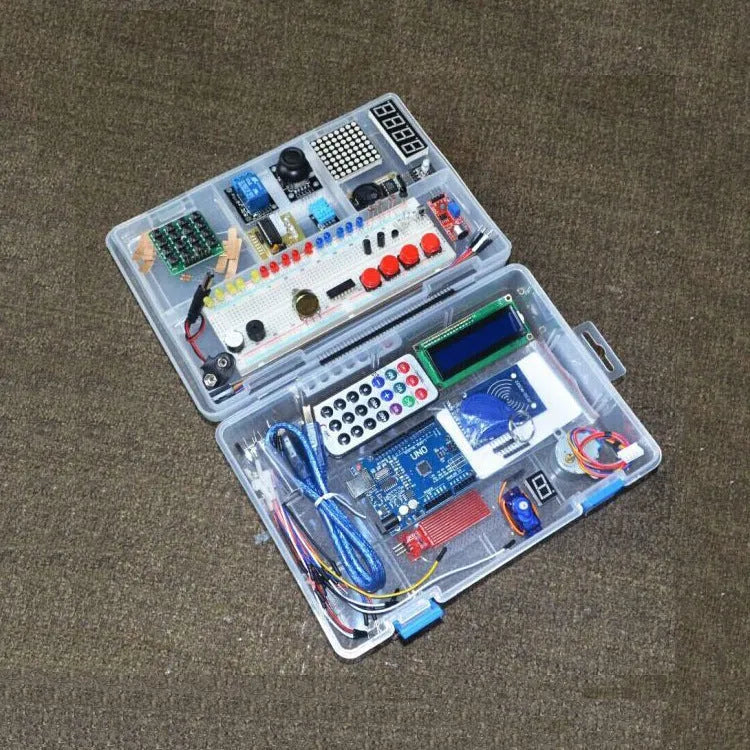

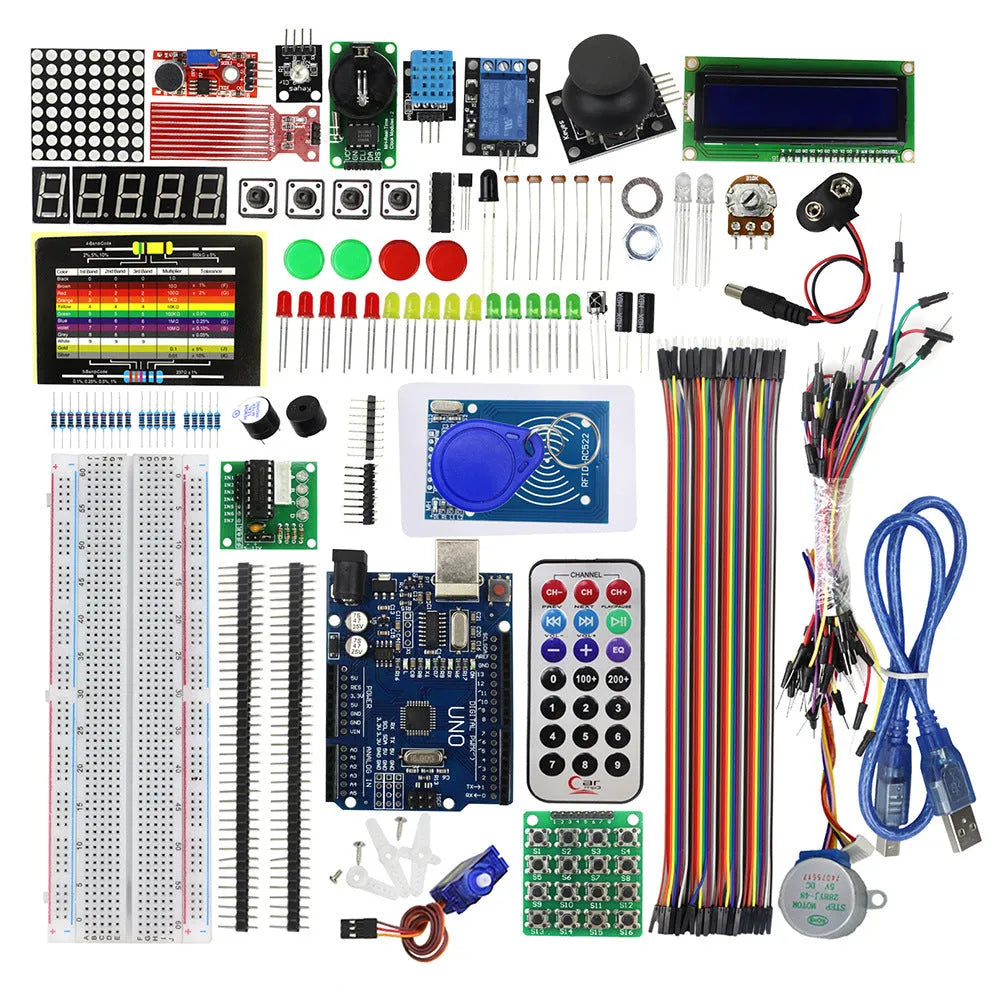

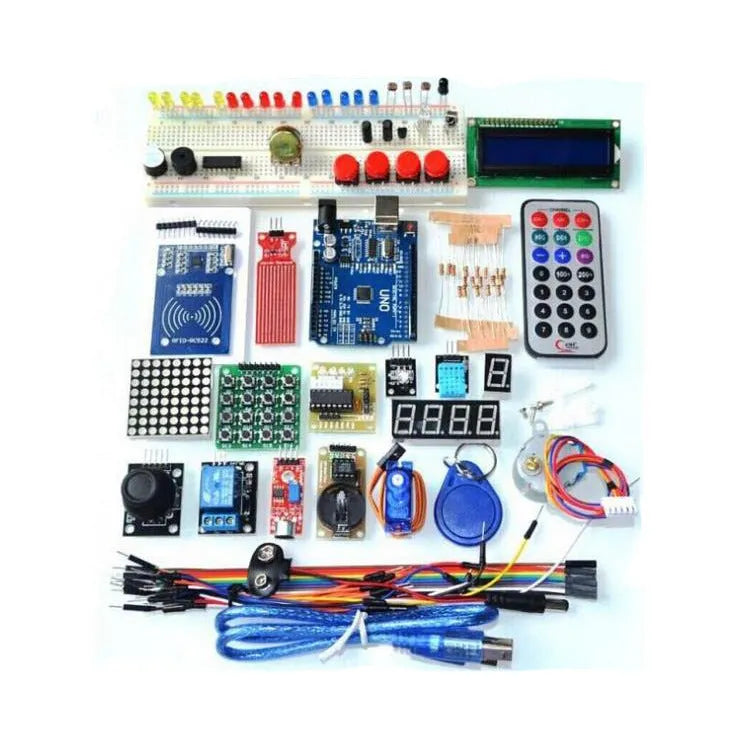

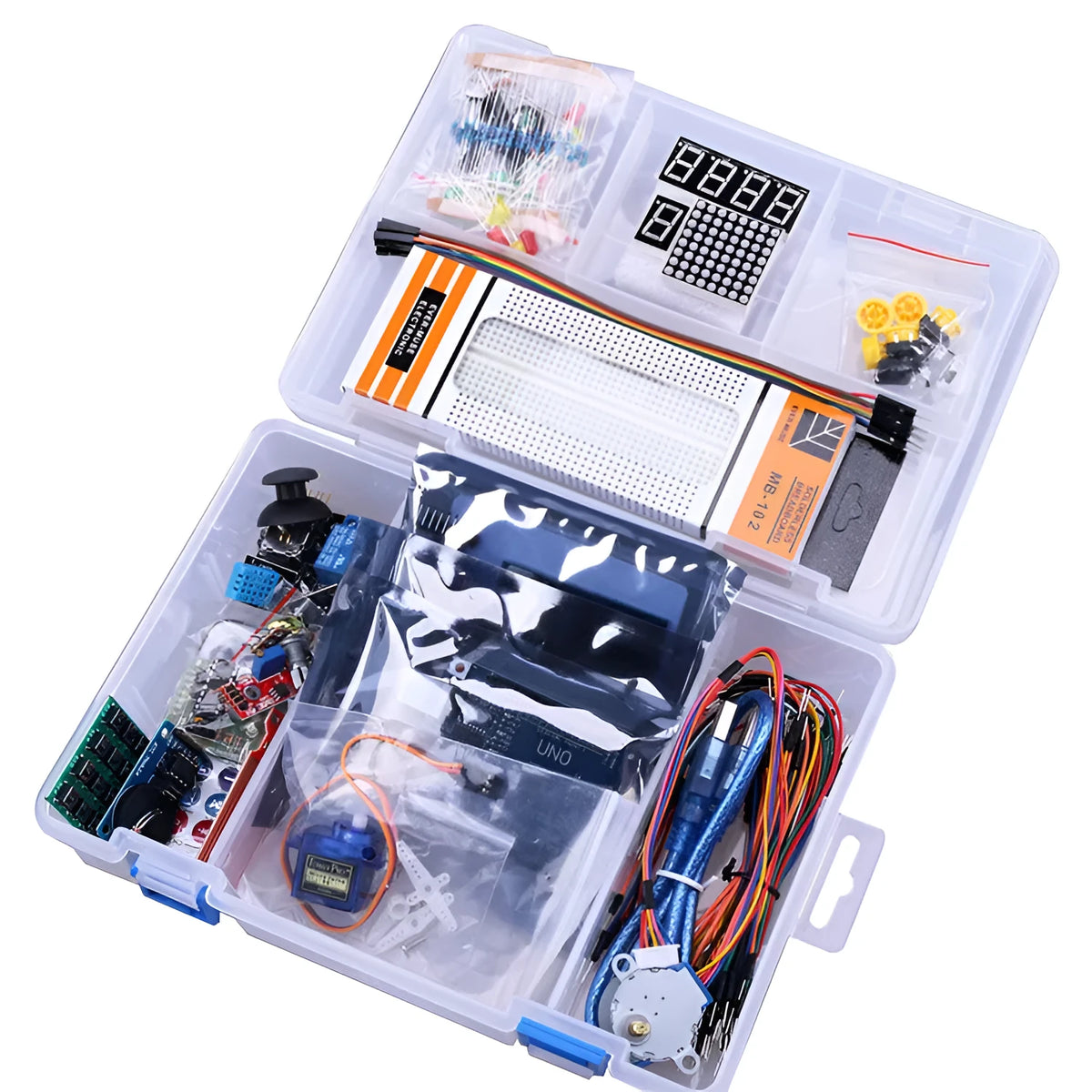

The package contains 37 learning elements: UNO R3 board, USB cable, breadboard, jumper cable, 5 LEDs, resistor pack, dupond line, potentiometer, buzzer, 74HC595 shift register, infrared receiver, LM35 temperature sensor, flame sensor, ball switch, photoresistor, key button, remote control, 4-digit display tube, 8x8 dot matrix module, 1-digit display tube, stepper motor driver board, stepper motor, 9g servo, 1602 LCD, XY joystick module, temperature module, water test module, RFID module with keychain and white card, sound module, relay module, clock module, 4x4 key board, RGB 3 colour module, and 9V battery snap.
UNO R3 Board and Connection
The UNO R3 board uses the CH340 chip for serial communication, which is widely supported by Arduino IDE. It has 14 digital input/output pins, 6 analogue inputs, and a USB power interface. The board operates at 5V, making it compatible with most standard beginner Arduino shields and modules.
Uses and Placement
This kit is designed for educational environments, home learning, and hobbyist experimentation. The variety of sensors and outputs allows for a wide range of practical projects.
Learning Electronics and Programming
Beginners can start with basic LED blinking circuits and progress to more complex projects involving stepper motor control, RFID tag reading, and LCD display output. The included 4x4 keypad and joystick add interactive control options.
Sensor-Based Experimentation
The flame, temperature, sound, water test, and photoresistor sensors enable environmental monitoring projects. The infrared receiver and remote control allow wireless control experiments.
Benefits and Buying Value
Buying a comprehensive kit like this saves the hassle of ordering dozens of parts individually. It provides a complete learning platform that can be reused for multiple projects.
All-in-One Solution
With 37 modules in one box, this kit eliminates the need to search for compatible components separately. It is particularly useful for teachers running classroom workshops or parents introducing children to coding.
Expandable and Reusable
The UNO R3 board is compatible with the wider Arduino ecosystem, so you can add additional sensors or shields later. All modules are reusable across different projects, providing good value for continuous learning.
