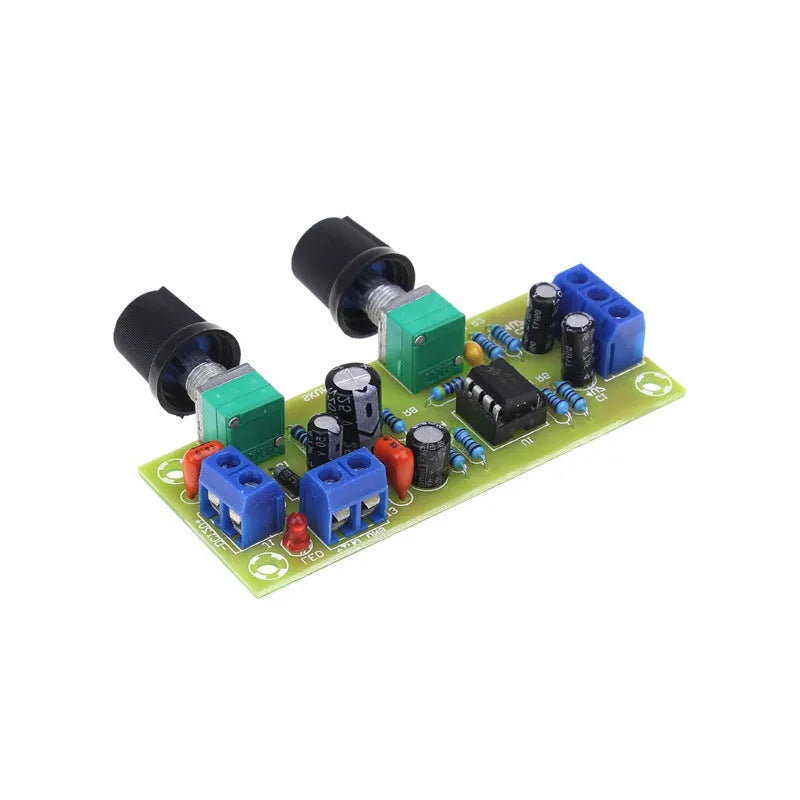

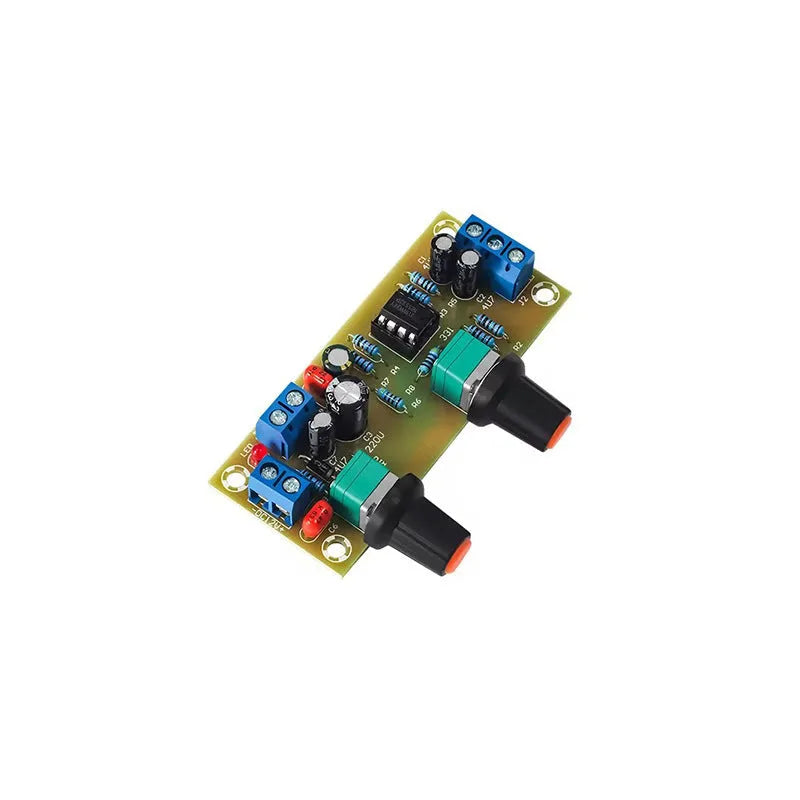

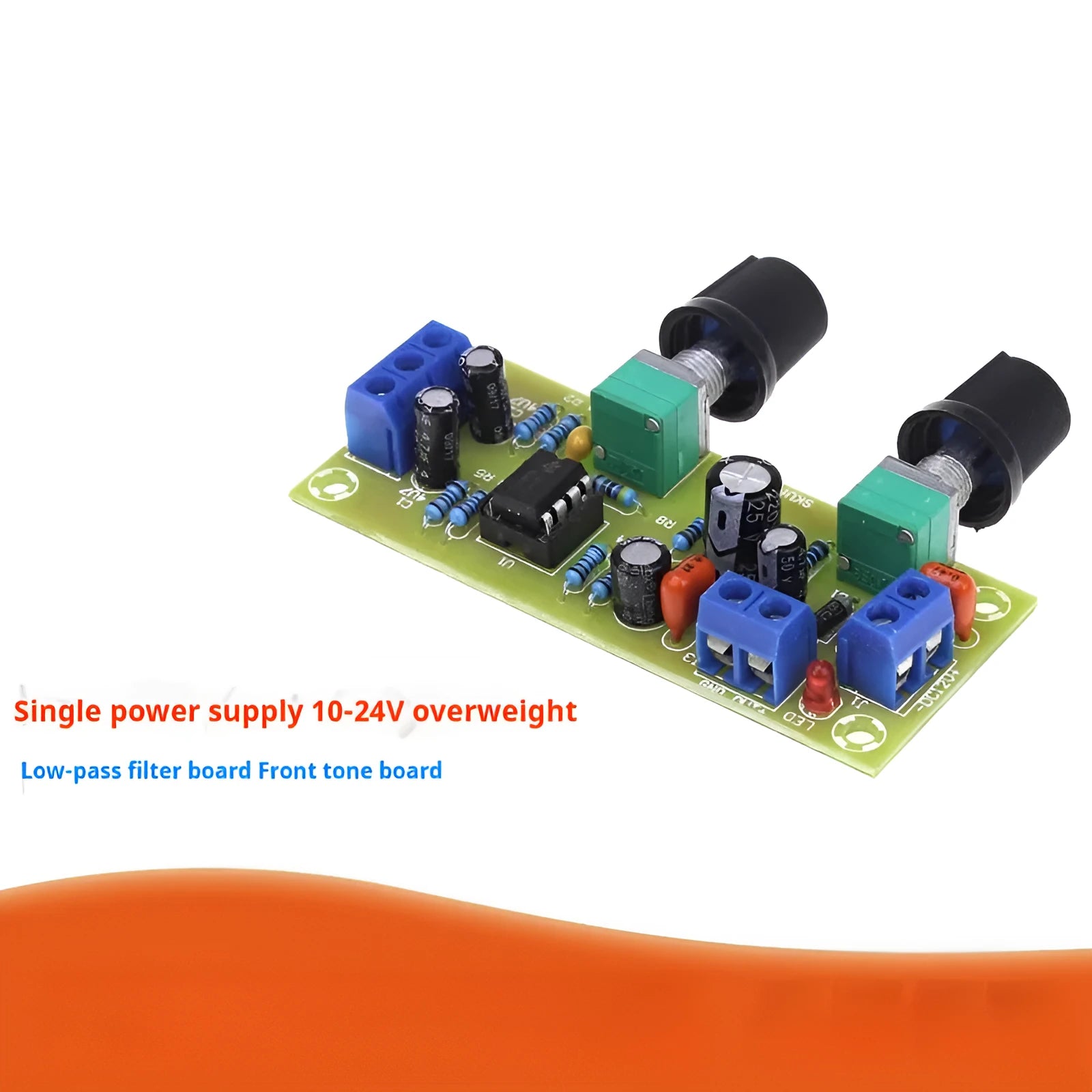

Car Audio Front Stage Board with 10-24V Single Power Supply for Bass Enhancement

This automotive audio processing board provides a solution for enhancing bass frequencies in vehicle sound systems without requiring complex power arrangements. Operating on a single DC power supply ranging from 10 to 24 volts, it integrates directly with standard automotive electrical systems. The board processes incoming audio signals to specifically boost the frequency range between 22Hz and 300Hz, targeting the lower spectrum where impactful bass reproduction occurs. With its compact dimensions and straightforward installation requirements, this front stage board offers a practical approach to improving audio dynamics in car audio setups where space and power considerations are important factors.

Features and Construction

The board's design focuses on practical functionality within automotive environments, balancing electrical performance with physical durability. Its construction and specifications address the particular demands of vehicle audio installations where vibration, temperature variations, and space constraints are common considerations.

Material and Build

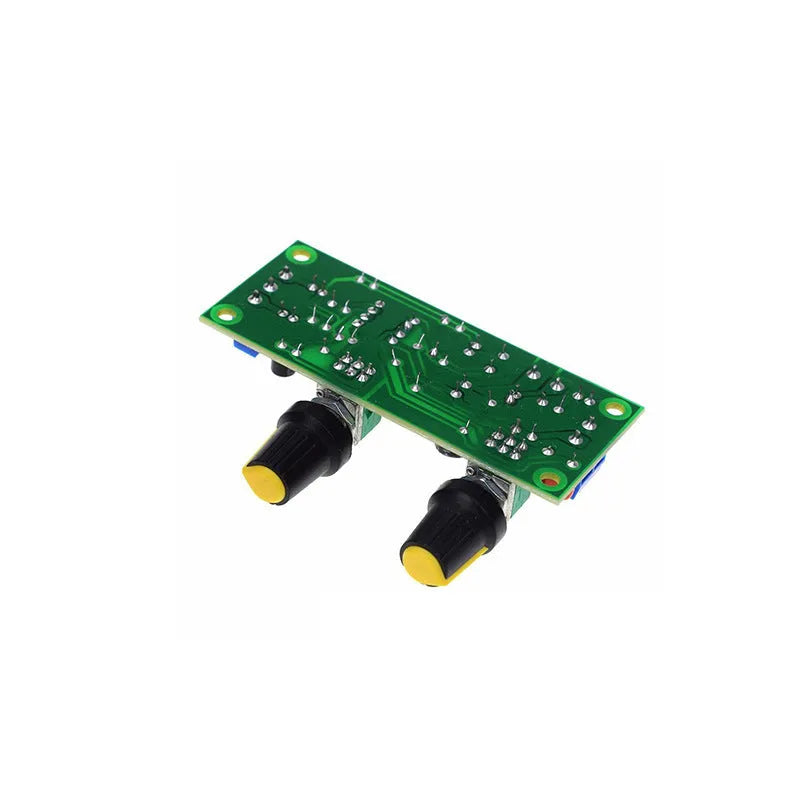

The printed circuit board uses FR-4 fibreboard material described as super hard, providing both electrical insulation and mechanical stability. This material choice offers resistance to warping and maintains integrity in the temperature ranges typically encountered in automotive installations. The PCB thickness measures 1.6mm, contributing to the board's overall rigidity while allowing standard component mounting. Electronic components are arranged to process audio signals efficiently within the specified frequency range while operating across the broad voltage input of 10-24V DC.

Size and Practical Fit

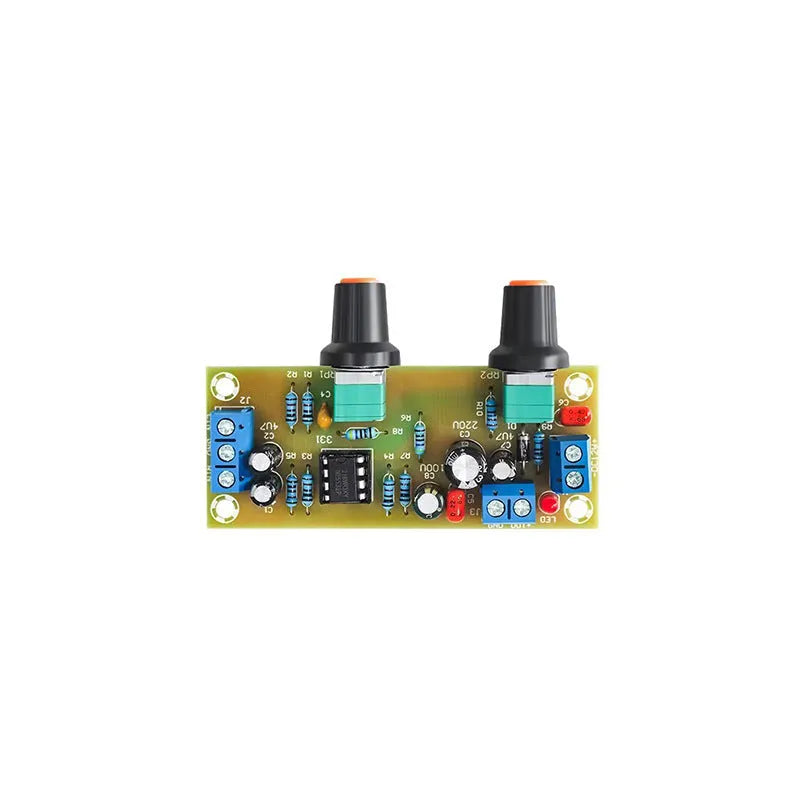

With dimensions of 78mm by 32mm, the board presents a compact footprint suitable for installation in constrained vehicle spaces. The 30g net weight minimises stress on mounting points while the 70mm by 24mm hole spacing with 3.2mm diameter holes provides secure attachment options. Potentiometer shafts are spaced 32.5mm apart, accommodating standard audio control components. These physical specifications facilitate integration into existing audio systems or custom installations where space utilisation is a priority alongside audio performance considerations.

Uses and Placement

This processing board serves specific functions within automotive audio systems, particularly where bass response enhancement is desired. Its design parameters suit various installation scenarios from basic upgrades to more comprehensive audio system modifications.

Event or Professional Use

For vehicle audio competitions or professional installations, the board's defined frequency range of 22Hz-300Hz allows targeted bass enhancement without affecting mid-range clarity. The single power supply requirement simplifies integration with competition power systems or professional audio racks. The mono output configuration works effectively with dedicated subwoofer channels or bass-specific amplification stages. Professional installers can appreciate the standardised mounting specifications and clear electrical parameters when designing complete audio systems for clients seeking improved low-frequency performance.

Everyday Home Use

In daily driving scenarios, the board provides noticeable bass enhancement without requiring extensive electrical modifications. The 10-24V operating range covers typical vehicle electrical systems whether idling or at cruising RPM. Home enthusiasts installing their own audio upgrades benefit from the straightforward mono or dual channel input options, accommodating various source units. The compact size allows discreet installation behind dashboards, under seats, or in boot compartments where space is limited but audio improvement is desired for music playback during regular commuting or longer journeys.

Benefits and Buying Value

The board offers specific advantages for automotive audio enthusiasts seeking practical bass enhancement solutions. Its value emerges from both its functional specifications and its design approach to common installation challenges.

Reuse and Low Maintenance

The FR-4 fibreboard construction contributes to long-term reliability in vehicle environments where materials face constant vibration and temperature cycling. The single power supply design reduces potential failure points compared to dual-voltage systems. With no moving parts and standard electronic components, maintenance requirements are minimal under normal operating conditions. The board's specifications allow it to function across different vehicle electrical systems, potentially serving in multiple vehicles over time with appropriate reinstallation.

Why Choose This Product

This front stage board provides a focused solution for automotive bass enhancement with clear technical parameters. The 10-24V operating range offers compatibility with most vehicles without requiring voltage regulation modifications. The 22Hz-300Hz frequency range specifically targets bass frequencies rather than attempting full-range processing. Physical dimensions and mounting specifications facilitate installation in space-constrained automotive environments. For those seeking to improve bass response without completely overhauling their audio system, this board presents a targeted approach with defined capabilities rather than vague promises of audio improvement.
