7-in-1 WiFi Graffiti Water Quality Monitor for Aquaculture and Pool Testing

Maintaining stable water quality across multiple parameters can be time-consuming and prone to error when using separate meters. This 7-in-1 WiFi-connected monitor consolidates EC, TDS, CF, pH, ORP, temperature, and humidity sensing into a single unit, enabling continuous online tracking through the Graffiti platform. Whether you manage a fish farm, maintain a hydroponic system, or monitor a swimming pool, having real-time data at your fingertips reduces manual testing effort and helps you respond quickly to changes in water chemistry.

Features and Construction

The monitor is built around a replaceable electrode module and a low power indicator for maintenance awareness. It supports two voltage standards to accommodate different regions.

Seven Sensing Modes

The unit measures EC from 0.00-20.00mS/cm (accuracy ±2%FS), TDS from 0-9990ppm (accuracy ±2%FS), CF from 0.1-199.9CF (accuracy ±2%FS), pH from 0.01-14.00pH (accuracy 0.05pH), ORP from -1200mV to +1200mV (accuracy ±5mV), air humidity from 10%-99%RH, and temperature from 0.1°C-60.0°C (accuracy ±0.5°C). This coverage eliminates the need for multiple handheld devices.

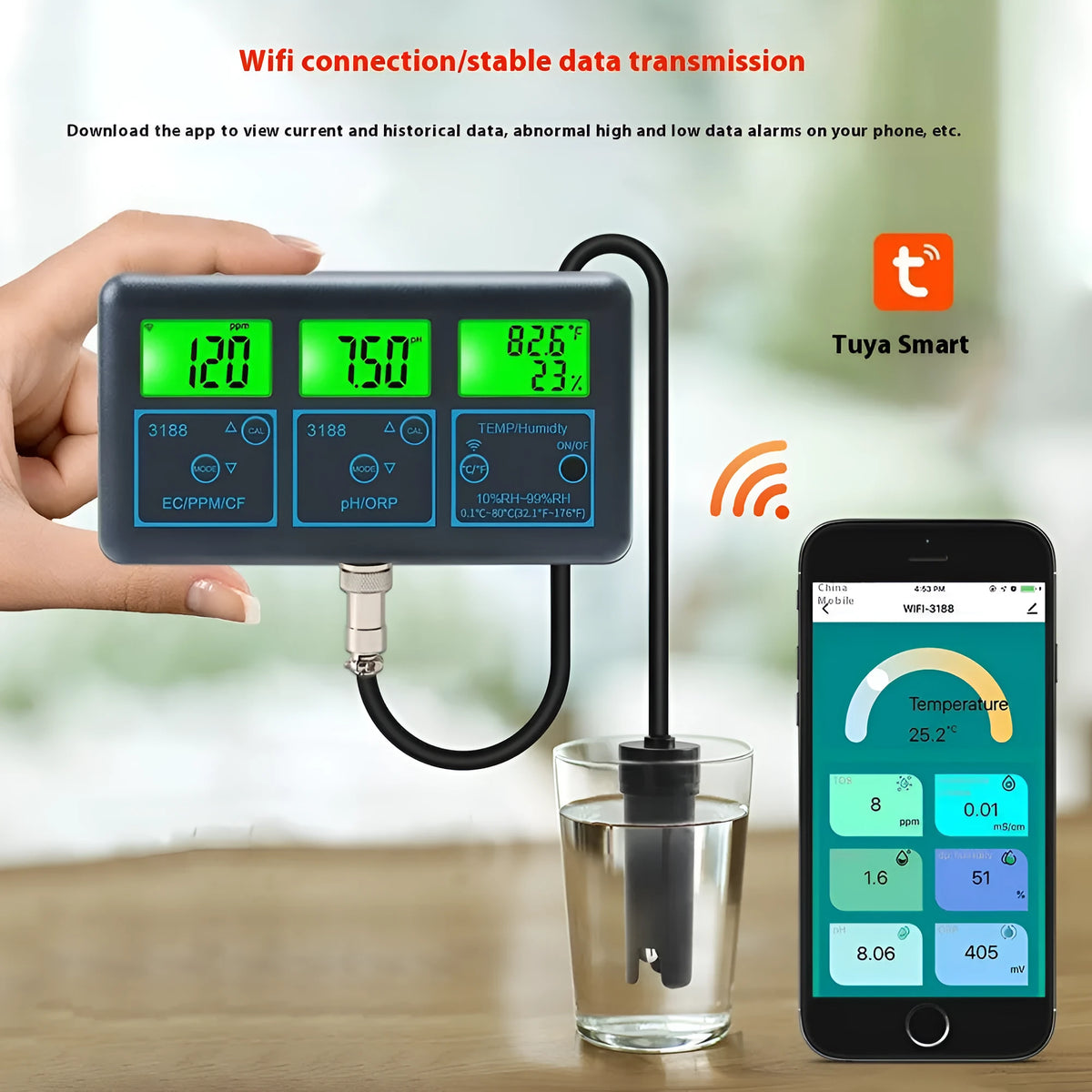

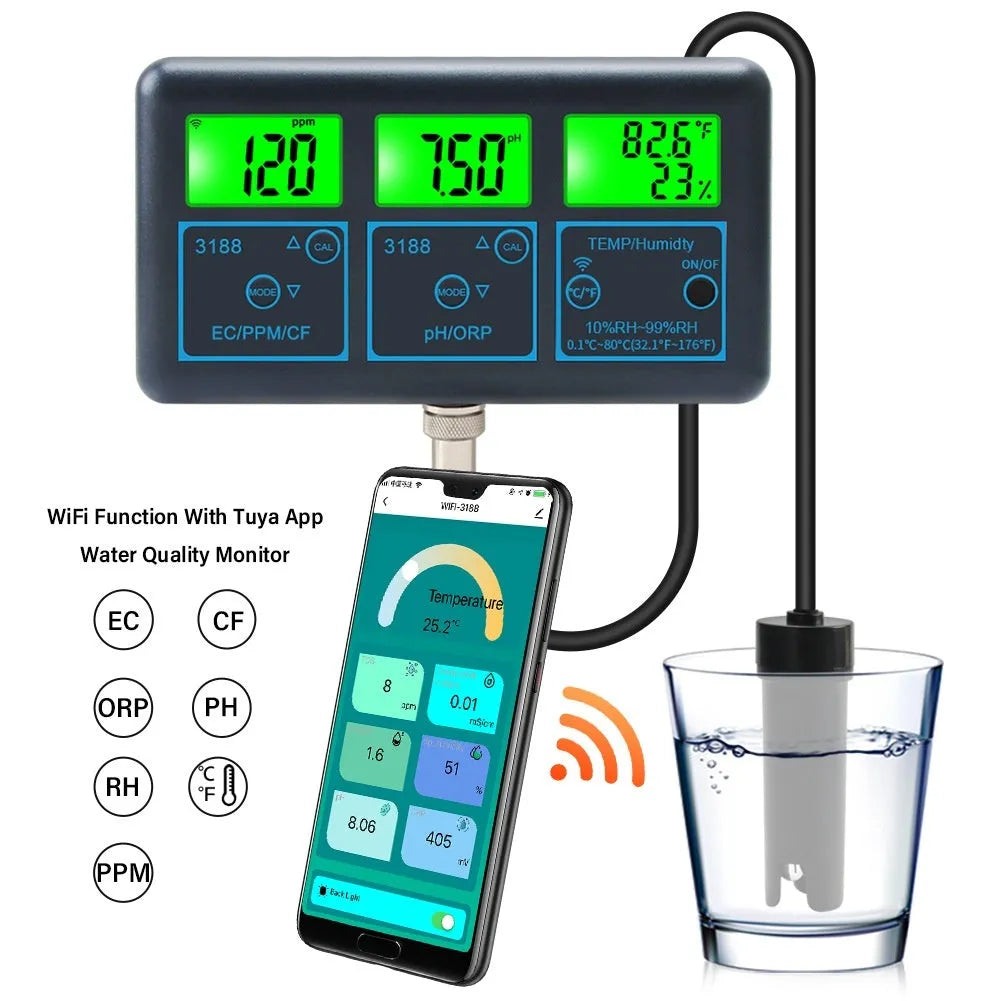

WiFi Connectivity and Graffiti Platform

Built-in WiFi enables the monitor to transmit data to the Graffiti cloud platform, allowing remote viewing on smartphones or tablets. Users can set alerts for parameter thresholds and review historical trends, which is particularly useful for unattended monitoring in commercial or hobbyist setups.

Voltage Options and Build

The monitor is available in two specifications: American Standard 110V and European Standard 230V. The colour is black throughout. The replaceable electrode extends the device lifespan without requiring a full unit replacement.

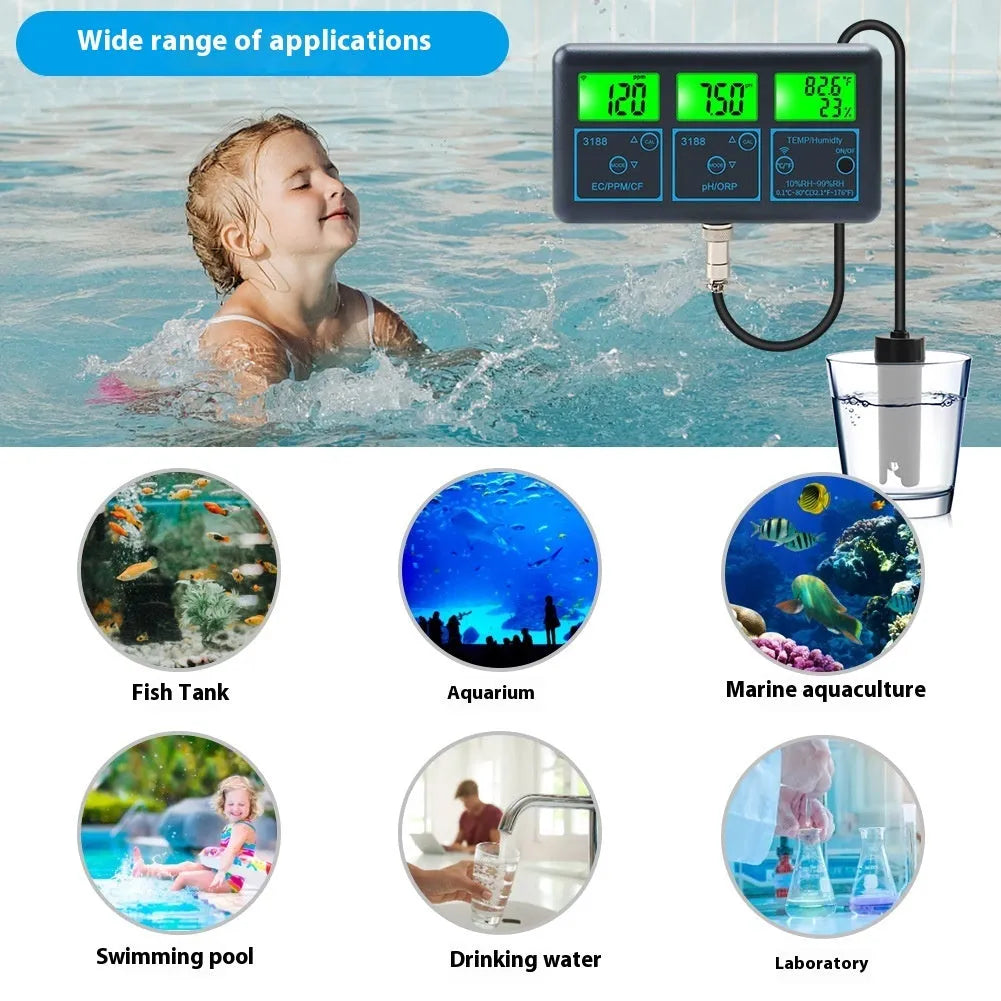

Uses and Placement

This monitor fits environments where water quality must be tracked continuously and remotely. Its sensor range covers the most common parameters in aqueous testing.

Aquaculture and Hydroponics

Fish farmers and hydroponic growers need stable pH, EC, and temperature levels. The monitor provides hourly or real-time readings, reducing manual dip-testing frequency. The ORP measurement helps assess disinfection status in recirculating systems.

Pool and Spa Management

Swimming pool operators can monitor pH and TDS levels to maintain chemical balance. Remote WiFi access allows checking water conditions from a distance, which is convenient during off-hours or for seasonal facilities.

Water Treatment and Environmental Testing

In small-scale water treatment applications, the monitor tracks multiple parameters simultaneously. The CF (conversion factor) setting enables custom calibration for specific water types.

Benefits and Buying Value

The monitor reduces the need for multiple separate meters and manual logging. Its replaceable electrode and voltage flexibility add long-term practicality.

Reduced Manual Effort

Instead of testing each parameter individually, the unit automates data collection. WiFi transmission eliminates the need to physically visit the monitor for readings, saving time in larger installations.

Replaceable Electrode for Longer Use

The 5-electrode design is user-replaceable, and the low power indicator alerts when replacement is needed. This design reduces total cost of ownership compared to sealed units that require complete replacement.

Why Choose This Product

For users who need consistent, multi-parameter water monitoring with remote access in a single black unit, this monitor offers a combined solution. The choice between 110V and 230V makes it adaptable to different electrical standards without an external converter.
